Mercedes Steering Lock ESL Emulator and Programming Service: W204, W207, W212

The latest solution to permanently get rid of Mercedes-Benz steering lock (ESL ELV) failure issues. Programmed to your VIN, no dealer coding, bench tested, easy installation, Plug-N-Play!

The #1 Choice of Independent Mercedes Repair Experts Across the Nation

You can lock and unlock the car with the remote, but the car doesn't start or crank?

Does the key turn, but nothing happens (no ignition, no dash lights)?

When the key is inserted, a message in the dash says:

• "Please Remove Key"
• "Don't forget the key"
• "Take your key from ignition"

Clicking or no sound from the steering lock ESL ELV unit when inserting the key?

Do you have "Intermittent" starting issues? Sometimes the car starts, sometimes not?

Tired of your Mercedes refusing to start? Here is the good news:

ARMHEX custom-programmed Mercedes ESL Emulator is the Plug & Play solution trusted by independent repair shops and technicians nationwide.

No moving parts, no dealer visits, no future failure, just a permanent fix you can rely on.

1. What is a Mercedes Steering Lock Emulator?
2. What are the symptoms of ESL failure and the related DTCs
3. How does ESL Emulator work?
4. How to install Mercedes ESL ELV Emulator
5. What are the compatible models?
6. How to buy the Mercedes ESL emulator and what items to send us
7. What is the turnaround time
8. How much does it cost
9. Why choose ARMHEX Mercedes Steering Lock Emulator service
10. Guarantee and technical support
11. Frequently Asked Questions (FAQ)

1. What is a Mercedes Steering Lock Emulator?

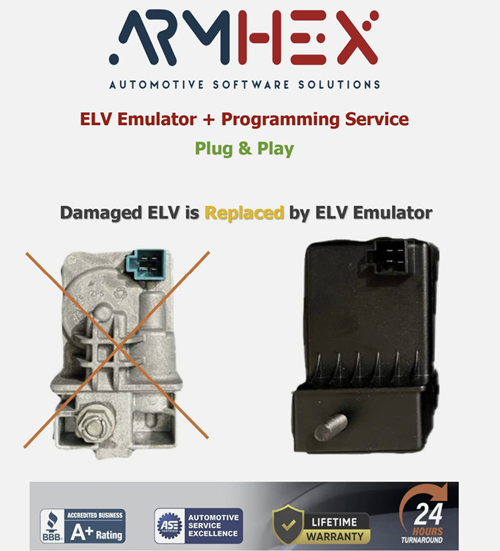

A Steering Lock Emulator (ESL/ELV Emulator) is an electronic device that replaces the original Mercedes steering lock module when it fails.

In Mercedes vehicles, the steering lock is an electronic safety feature that unlocks the steering wheel when you insert the key and locks it when you remove the key.

Over time, the original ESL module’s motor or electronics fail, leaving you with a car that won’t start or unlock the steering wheel.

The emulator bypasses the faulty ESL by simulating its electronic signals, allowing the car to start and function normally, without moving parts, so it will never fail again and can be considered a permanent solution.

In short, a steering lock emulator is a permanent, Plug & Play solution that eliminates steering lock failure problems forever.

Important Note: Like any emulator, it only helps you to get rid of starting issues, and it doesn't have a mechanical steering locking mechanism.

2. What are the symptoms of ESL failure and the related DTCs

The most common complaint when your steering lock fails is that the car does not start.  The key remote (Key Fob) can unlock and lock the car, but when the key is inserted into the ignition switch (EIS), a message in the dash says "Please Remove Key".

You may experience these issues:

• The car won’t start even though the key turns in the ignition.
• “Steering Lock” error message shows on the dashboard.
• The steering wheel won’t unlock when inserting the key.

• Intermittent starting issues, sometimes the car starts, sometimes not.
• Clicking or no sound from the steering lock unit when inserting the key.
• Battery drain issues caused by a faulty ESL module.

• Key turns, but nothing happens (no ignition, no dash lights).
• Complete failure of the ESL motor, the car is immobilized.

You may (or may not) get the following errors and the scan tool (DTCs)

• A25464 or Implausible Signal
• A25407 or Mechanical Fault in Steering Lock
• B2254 or Column Lock Module Internal
• A25409 or Component Fault
• A22449 or Ignition Lock Electrical Fault
• A25408 or Signal Fault or Invalid Message

3. How does ESL Emulator work?

A Mercedes Steering Lock Emulator (ESL/ELV Emulator) is designed to replace the original electronic steering lock module that fails in many models.

Instead of repairing the faulty unit, the emulator mimics the same signals the car expects to see, so your Mercedes starts and drives normally, but without moving parts that can break again.

Here’s how the process works with our service:

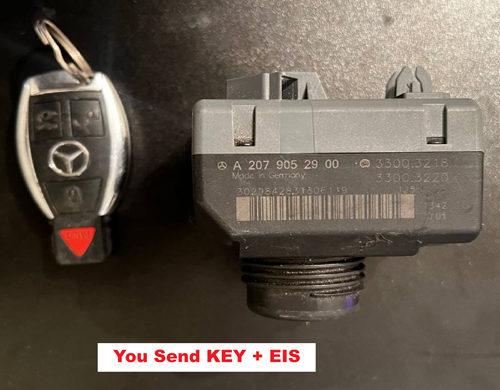

Step 1: You Send Us Your Parts (2 parts)

Remove your EIS (Electronic Ignition Switch) and car key from the vehicle.

Ship them to us (just the EIS and key, you don’t need to send the whole ESL).

Step 2: We program & test your emulator

Our engineers read the data from your EIS and key. We program a brand-new ESL Emulator so it is matched to your vehicle VIN.

The emulator is then bench-tested with your EIS and key to ensure Plug & Play installation.

Step 3: We send it back, ready to install

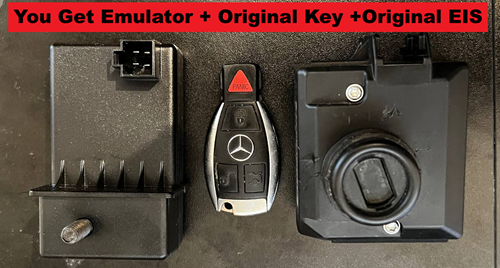

You receive your custom-programmed ESL Emulator, along with your original EIS and key. The emulator is fully coded and matched, so no dealer coding or extra programming is required.

Step 4: Plug it in and drive

Simply connect the emulator in place of the old ESL. Only the electrical connection is enough!

Insert your key into the ignition, your Mercedes will start immediately.

The faulty ESL is now bypassed permanently, with no risk of future failure.

4. How to install Mercedes ESL ELV Emulator

Step 1: Locate the Steering Lock (ESL/ELV)

The original ESL/ELV unit is mounted on the steering column, near the ignition switch (EIS). In most Mercedes models (W204, W207, W212, etc.), it’s secured with bolts to the column.

Step 2: Disconnect the Faulty ESL

Unplug the ESL connector plug (usually a 3-pin or 4-pin plug, depending on the model). You don’t need to repair or keep the old ESL; the emulator replaces it completely.

Step 3: Connect the Emulator

Plug the emulator directly into the ESL connector. The emulator is already programmed and matched to your EIS and key, so no extra coding is required.

Step 4: Test the Installation

Insert your Mercedes key into the EIS. The car should now unlock and start immediately, with no steering lock errors.

5. What are the compatible models?

The emulator works with Mercedes cars starting from 2008 to 2014 years and W204, X204, W207, W212, R172 chassis.

• X204 GLK-Class (2008–2012): GLK250, GLK350
• W204 C-Class (2008–2014): C250, C300, C350, C63 AMG
• C207/A207 E-Class Coupe & Convertible (2010–2013): E350, E550
• R172 SLK-Class (2012–2014): SLK250, SLK350, SLK55 AMG

6. What is the turnaround time

The turnaround time is 1-2 business days. If you are in a rush, you can pay an additional $50 and get same-day service.

7. How much does the Mercedes ESL Emulator cost?

We always use the latest emulators, best quality, reliable, 100% tested products. Our solution and service are 100% Plug N Play, and we offer a 100% Money-Back guarantee!

Below you can see the price list.

A: Best quality ESL Emulator + Programming + Bench Testing + Free return shipping = $99

(1business day service)

B: Best quality ESL Emulator + Programming + Bench Testing + Free return shipping = $149

(Same-Day service)

C: Best quality ESL Emulator + Programming + Bench Testing + 1 New Keyfob + Free return shipping = $190

(Same-Day service)

Note: If you need additional service or notes, please contact us!

8. Why choose ARMHEX Mercedes Steering Lock Emulator services

• More than 10,000 items sold! less than 10 issues reported
• VIN-Programmed using your EIS and working key
• Bench-tested for 100% compatibility
• No additional coding required. Plug N Play solution!

9. Guarantee and technical support

ARMHEX offers a 100% Money-Back guarantee!

Contact us on WhatsApp or by email, let us know about the service you need or the issue with the car.

• WhatsApp:

+1 (747) 229 6694  (Only for VIP members)

+1 (657) 229 1838  (All customers)

• Email: contact.armhex@Audiail.com

10. Frequently asked questions? (FAQ)

Q: Do I need to send you all of the working key fobs?
A: No. One working key is enough.

Q: If I send you only one working key, will my other key fobs still work?
A: Yes, for programming, we only need 1 working key; however, all of your working keys will work with the emulator.

Q: Do I need to remove the original steering lock (ESL)?
A: Yes. The emulator replaces the original (damaged) ESL. The factory lock must be removed to release the steering wheel.

Q: Do I need to send my old steering lock?
A: No. We don't need it. If sent, it will not be returned.

Q: Will I lose any vehicle features?
A: No. The emulator only replaces the steering lock mechanism. All other features remain functional.

Q: Is it necessary to remove the Ignition Switch (EIS - EZS) and the Working key to send it to you?
A: Yes, absolutely. It is impossible to program the emulator just by sending us the VIN.

Q: Do you sell the emulator separately?
A: No.
