Volvo 48V Battery Repair Via OBD | B16A1, B1652, P0AA1, & C127F | Online Remote Service

A Volvo 48V battery malfunction may involve low cell voltage, deep discharge, charging faults, crash-related protection, MVBM software, or damaged battery hardware. Symptoms can include charging warnings, Start/Stop unavailable, and engine starting problems. A VIDA, Autel, or compatible diagnostic scan is needed to identify the cause.

Yes, many Volvo MVBM software lockouts can be repaired and reset through compatible remote Bench procedures using CAN L and CAN H Pins.

B16A1:9F indicates Low SOC Permanently Disconnected, with a stuck-off condition. It is associated with deep discharge and battery protection. Charging the battery or clearing the DTC may not restore operation if the MVBM remains locked. Recovery depends on verified cell condition and the cause of the lockout.

B1652:7F indicates Crash Detected – Actuator Stuck Off in documented Volvo MVBM diagnostic reports. It may appear when the 48V battery has been disconnected following a collision. Before recovery, the vehicle's crash-related components, battery enclosure, switching hardware, and electrical safety must be verified.

B17EF:16 indicates a critical battery cell voltage below the permitted threshold. Even if the total battery pack measures approximately 48V, an individual cell may be undervoltage or unbalanced. Cell-level diagnosis and approved battery service procedures are necessary before considering an MVBM reset.

Charging the battery does not necessarily remove a stored MVBM protection state. Codes such as B16A1:9F or B17EF:16 may remain when the module detects an unresolved cell-voltage, switching, or internal fault. Technicians should check individual cell data, fault status, and MVBM operating conditions before attempting recovery.

No, the battery must be removed from the car and connected to a scan tool on the bench. We provide the pinout.

MVBM stands for Mid-Voltage Battery Module. It is the Volvo control module associated with the 48V mild-hybrid battery system. Its battery-management functions monitor conditions such as voltage, current, temperature, and protection status. Technicians commonly search for Volvo MVBM reset, BMS reset, or 48V battery unlock.

P0AA1 generally relates to a hybrid battery positive contactor stuck closed, but its exact interpretation in a particular Volvo 48V system must be verified. C127F also requires the reporting control module and a complete diagnostic description. Send ARMHEX the full VIDA, Autel, or Launch report for evaluation rather than assuming either code is an MVBM software-lock fault.

Autel and Launch can provide diagnostic information and supported service functions, depending on the vehicle and software version. Ordinary DTC clearing may not remove a persistent MVBM protection state. Some faults require additional manufacturer procedures, compatible programming, or physical battery repair.

Compatibility inquiries are accepted for selected Volvo XC40, XC60, XC90, S60, S90, V60, and V90 B3, B4, B5, and B6 mild-hybrid variants. Remote reset support depends on the exact 48V battery part number, MVBM hardware/software version, and fault condition. Plug-in hybrid high-voltage batteries are a different system.

File-based MVBM repair may be available for selected battery modules when a verified, compatible procedure exists. Not every Volvo 48V battery reset requires EEPROM or flash modification. ARMHEX reviews the module part number, diagnostic data, and recovery method before confirming file-service availability.

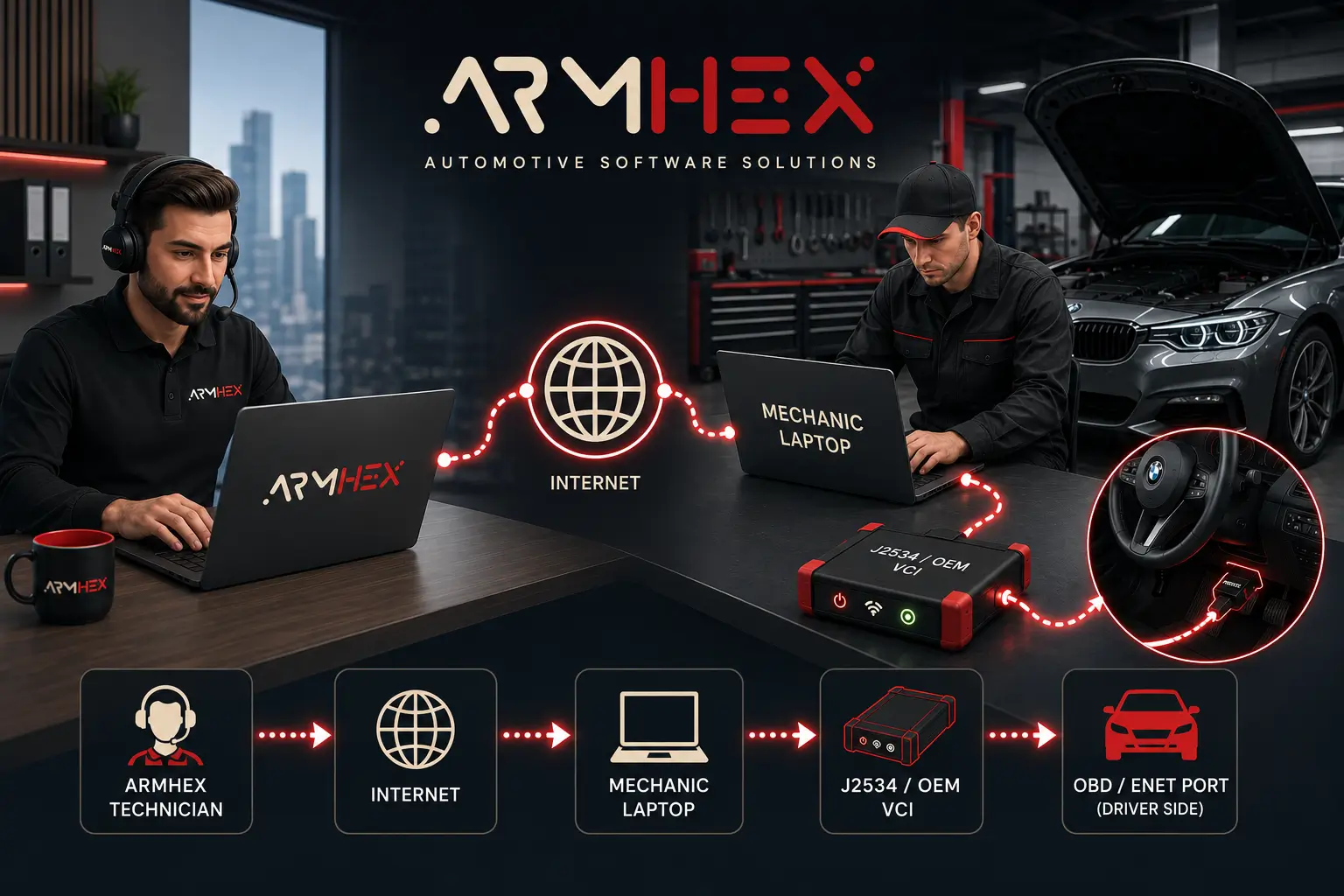

For a supported remote Bench session, you typically need a Windows laptop, a stable internet connection, a compatible vehicle diagnostic interface, a pinout, proper resistors, an OBD connector, and appropriate 12V vehicle power support. ARMHEX confirms the exact interface and software requirements before the appointment. A J2534 interface alone does not guarantee compatibility.

Please send clear photos of the original 48V battery label and part number, and the complete MVBM DTC report from Autel, Launch, or other scan tools. Also mention whether the fault occurred after an accident, deep discharge, prolonged parking, charging failure, or battery replacement. ARMHEX will review compatibility before booking.
